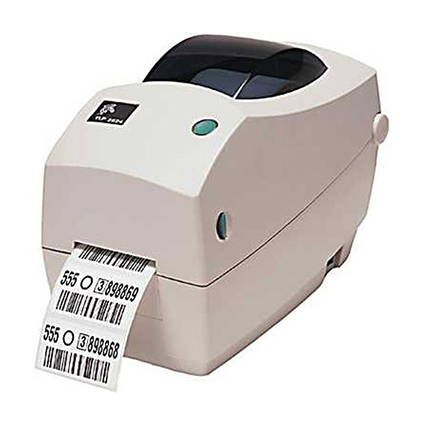

The ultra - compact TLP 2824 Plus bar code label printer, for print widths up to 2.2 inches/56 mm, brings powerful performance to applications requiring both direct thermal and thermal transfer printing. It includes a 32 - bit RISC processor for faster formatting and first label out, an auto - sensing serial port, and co - resident EPL and ZPL programming languages. Available options include additional memory, 10/100 Ethernet, label peeler, and receipt/label cutter.

Its ease of use - including Zebra Setup Utilities software for simple setup, OpenACCESS design and clear media window for simple media loading and monitoring, and an instant reset button - results in increased workplace efficiency. Offering flexible connectivity and options, the TLP 2824 Plus fits easily into a variety of applications.

Product Model: TLP 2824 Plus
Product Name: TLP 2824 Plus Thermal Label Printer
Product Type: Direct Thermal/Thermal Transfer Printer
Interfaces/Ports
Serial Port: Yes
USB: Yes
Maximum Label Length: 990.60 mm
Maximum Label Width: 59.94 mm
Maximum Roll Diameter: 127 mm
Media Type: Black Bar
Continuous Form
Continuous Receipt
Die - cut Label
Fanfold
Gap
Notch
Notched
Perforated Label
Receipt
Roll Fed
Tag
Tag Stock
Memory
Standard Memory: 8 MB
Miscellaneous

Package Contents
TLP 2824 Plus Thermal Label Printer
Software Drivers CD
Platform Supported: PC

Physical Characteristics
Depth: 241.3 mm
Form Factor: Desktop
Height: 177.8 mm
Width: 134.6 mm

Technical Information
Maximum Mono Print Speed: 101.60 mm/s
Maximum Print Resolution: 203 dpi
Maximum Print Width: 55.88 mm (2.20)
Print Colour: Monochrome
Recommended Use: Label Print
Warranty
Limited Warranty: 1 Year
